Product Introduction

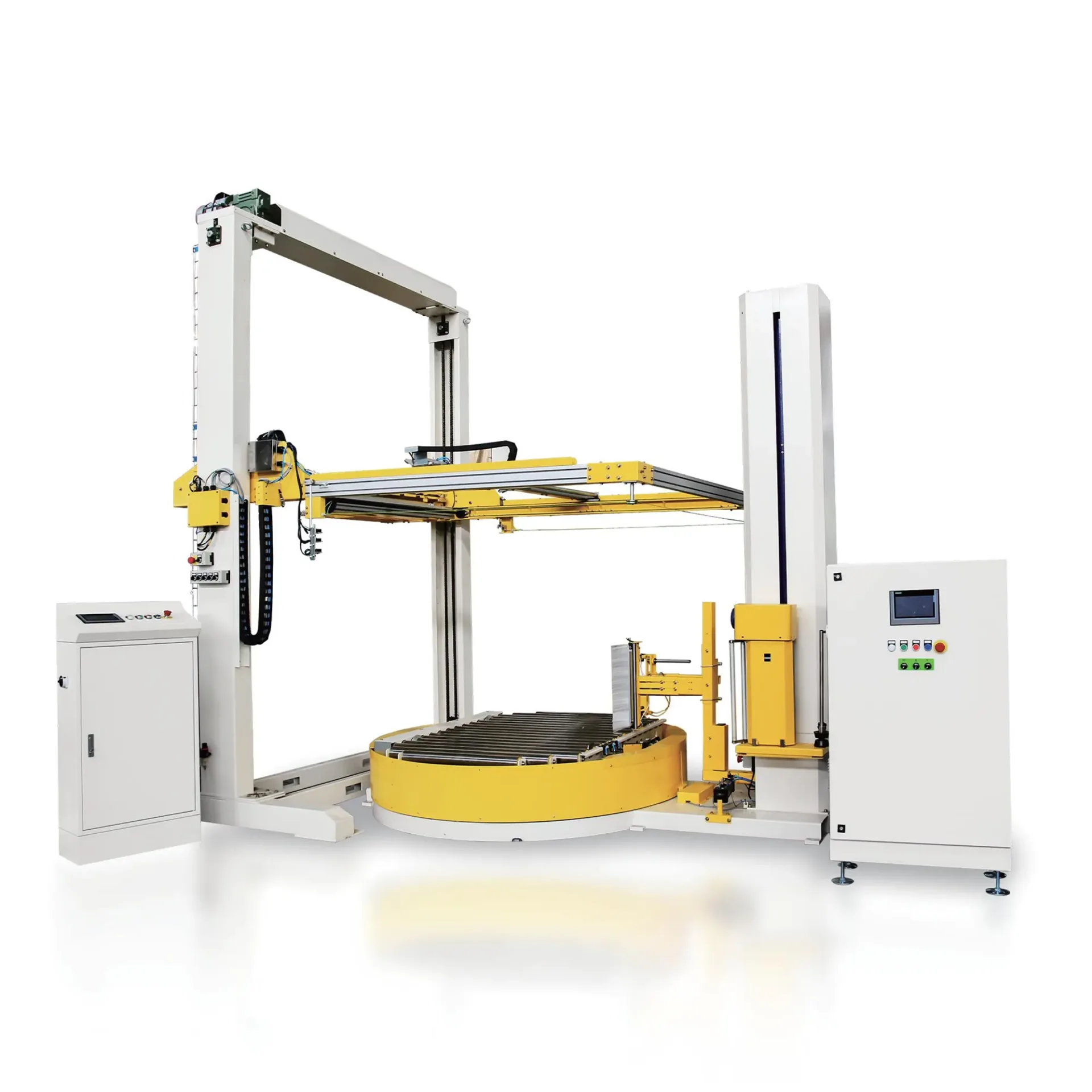

The MH-FG-2000D + MH-FG-2000RC Pallet Stretch Wrapper is a rotary arm stretch wrapping system designed for heavy, unstable, or oversized pallet loads. Unlike conventional turntable wrappers, the rotary arm rotates around the pallet while the load remains stationary, making it ideal for fragile, lightweight, or high-stacked products.
Equipped with an automatic film clamping, cutting, and wrapping system, this machine ensures secure pallet stabilization, improved transportation safety, and reduced packaging material consumption. It is widely used in logistics centers, food and beverage industries, building materials, paper products, and warehouse distribution operations.
| Item | Specification |
|---|---|
| Model | MH-FG-2000D + MH-FG-2000RC |
| Machine Type | Rotary Arm Pallet Stretch Wrapper |
| Power Supply | 3P AC380V / 50Hz |
| Air Pressure | 0.6 – 0.8 MPa |
| Maximum Pallet Size | ≤1200 × 1200 mm |
| Standard Wrapping Height | 2400 mm |
| Optional Wrapping Heights | 2000 / 2700 / 3000 / 3200 / 3400 mm |
| Film Type | PE Stretch Film |
| Film Width | ≤1800 mm |
| Film Roll Outer Diameter | ≤Φ300 mm |
| Noise Level | ≤75 dB(A) |
| Working Temperature | -10°C to 40°C |
| Humidity Requirement | ≤90% RH |
| Optional Equipment | Conveyor Line |
| Operation Mode | Fully Automatic |
