Product Introduction

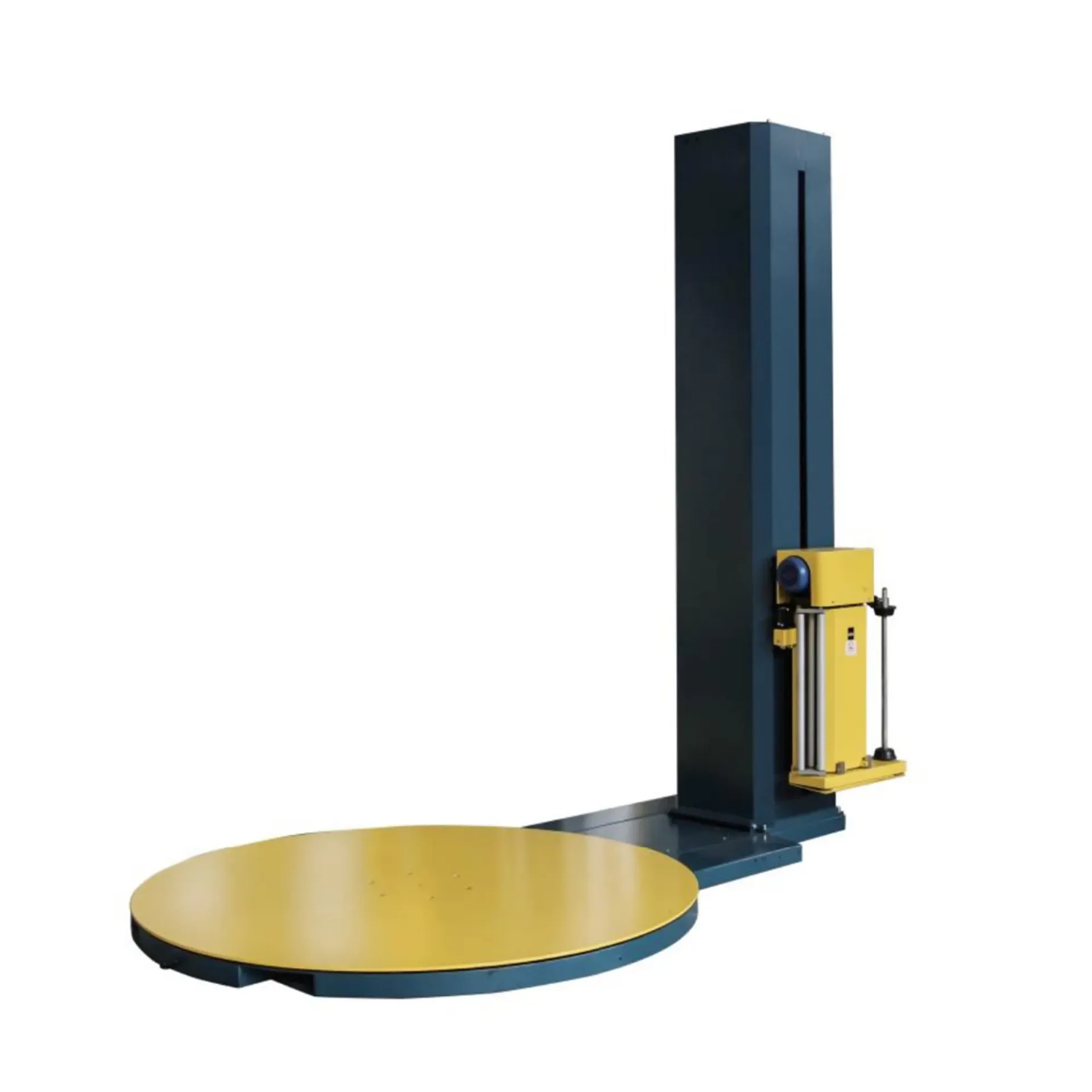

The MH-FG-2000 Pre-Stretch Automatic Pallet Stretch Wrapper is a turntable-type pallet wrapping machine designed for efficient and stable pallet packaging. Utilizing advanced pre-stretch film technology, the machine maximizes film usage while ensuring excellent load stability during storage and transportation.
The rotating turntable wraps palletized products automatically with LLDPE stretch film, making it ideal for warehouses, logistics centers, food and beverage factories, chemical industries, building materials, and manufacturing plants. With adjustable turntable sizes, mast heights, and wrapping programs, the MH-FG-2000 offers a flexible solution for various pallet packaging requirements.
| Item | Specification |
|---|---|
| Model | MH-FG-2000 |
| Machine Type | Pre-Stretch Automatic Pallet Stretch Wrapper |
| Power Supply | 1P AC220V / 50Hz |
| Turntable Speed | 0–10 rpm |
| Standard Turntable Diameter | Φ1500 mm |
| Optional Turntable Diameter | Φ1650 / Φ1800 / Φ2000 / Φ2200 mm |
| Standard Mast Height | 2400 mm |
| Optional Mast Height | 2000 / 2700 / 3000 / 3200 / 3400 mm |
| Load Capacity | 2000 kg |
| Effective Wrapping Height | Mast Height – 400 mm |
| Packaging Material | LLDPE Stretch Film |
| Film Width | ≤500 mm |
| Film Roll Outer Diameter | ≤Φ280 mm |
| Machine Dimensions | 1500 × 2440 × 2475 mm |
