Product Introduction

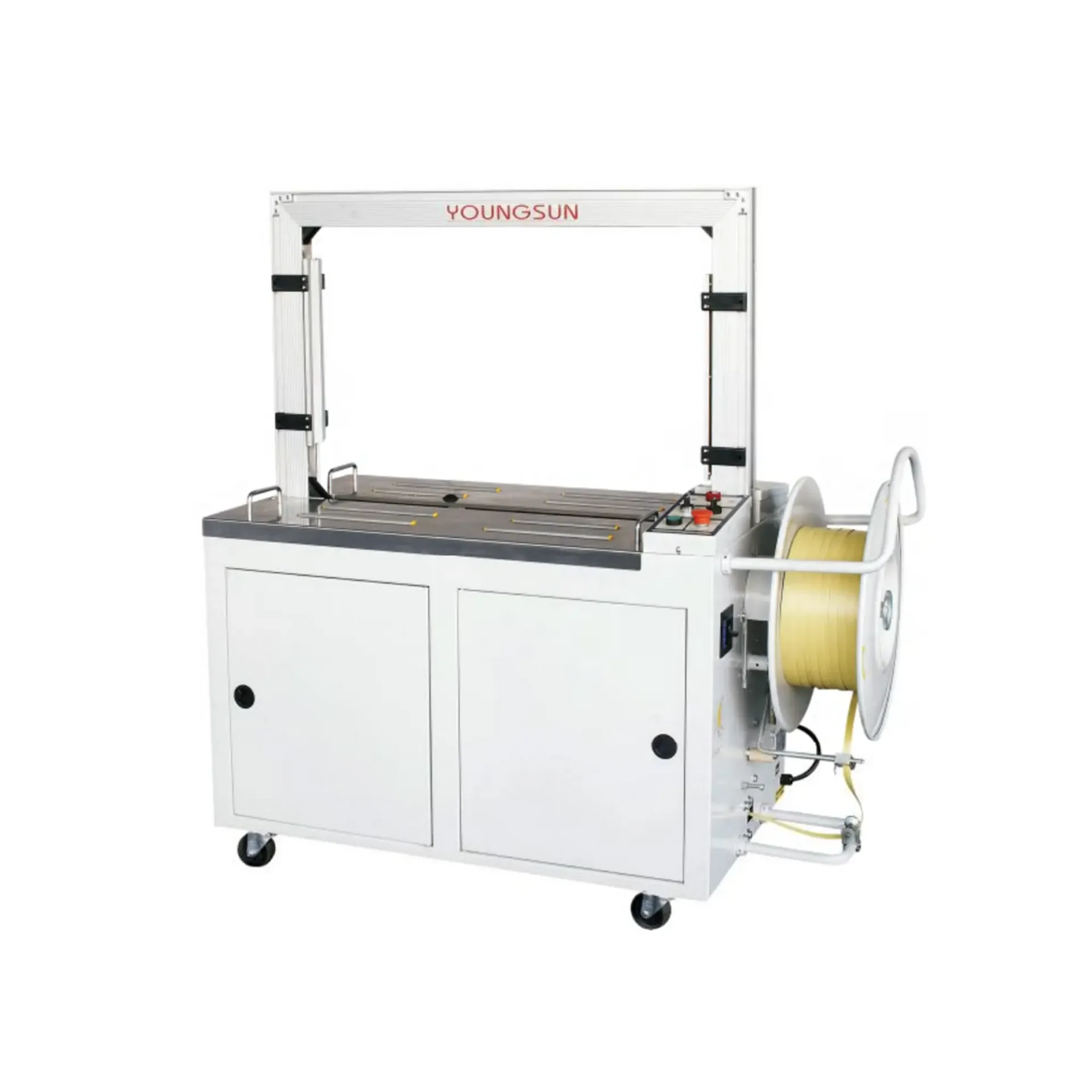

The MH-101A Automatic Strapping Machine is designed for efficient and reliable carton and package strapping operations in logistics, warehousing, food, beverage, pharmaceutical, and manufacturing industries. Featuring automatic tensioning, sealing, and cutting functions, the machine significantly improves packaging efficiency while reducing labor costs.
With a robust structure, adjustable working table height, and customizable frame size, the MH-101A can accommodate a wide range of package dimensions and production requirements.
| Item | Specification |
|---|---|
| Model | MH-101A |
| Machine Type | Automatic Strapping Machine |
| Power Supply | 380V / 50-60Hz |
| Power Consumption | 1.0 kW |
| Machine Dimensions | 1400 × 628 × 1418 mm |
| Minimum Package Size | W80 × H100 mm |
| Standard Frame Size | W800 × H600 mm |
| Frame Size | Customizable |
| Working Table Height | 750 mm (Customizable) |
| Strapping Speed | ≤ 2.5 sec/cycle |
| Strap Material | PP Strap |
| Strap Width | 9-15 mm (±1 mm) |
| Strap Thickness | 0.55-1.0 mm (±0.1 mm) |
| Operation Mode | Fully Automatic |
